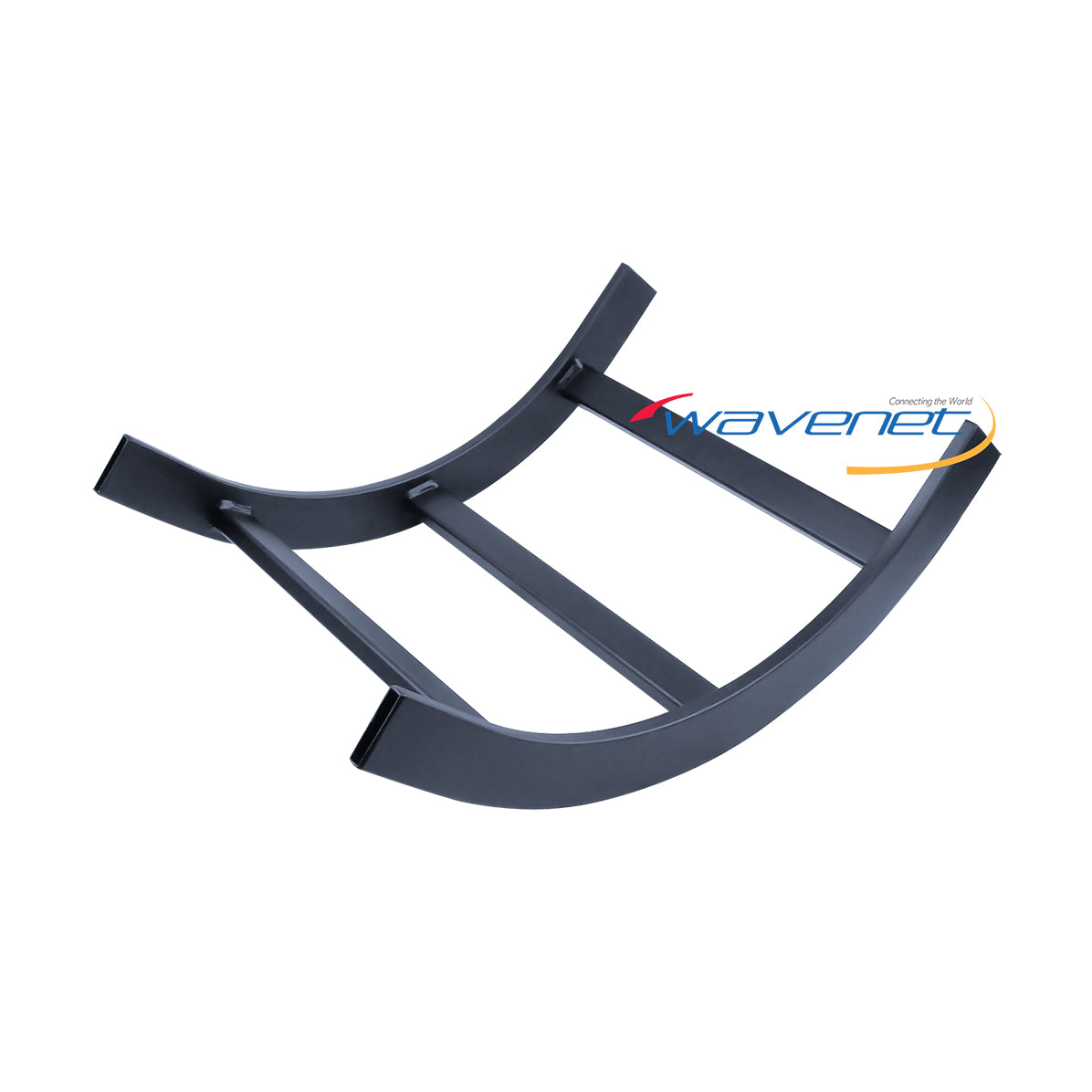

WL-IR9012-BK UNIVERSAL RADIUS BEND LADDER
The universal radius bend ladder can be used to change vertical cable runs to a horizontal direction or vise versa. Functions as both an inside bend and an outside bend. Designed to conform with minimum cable bend radius requirements.
Features:
- Sides made of 1-1/2 x 3/8 x .06 wall tubular steel
- Rungs made of 1 x 1/2 x .06 wall tubular steel
- Components are RoHS compliant
- Conforms to EIA-310 Standard
- Easy installation using butt-splice kit
- Available in black and white finishes (custom colors available through special order)
- Available in 12" and 18" wide
- 6", 9", 15", and 24" wide available through special order
Part#:WL-IR9012-BK
